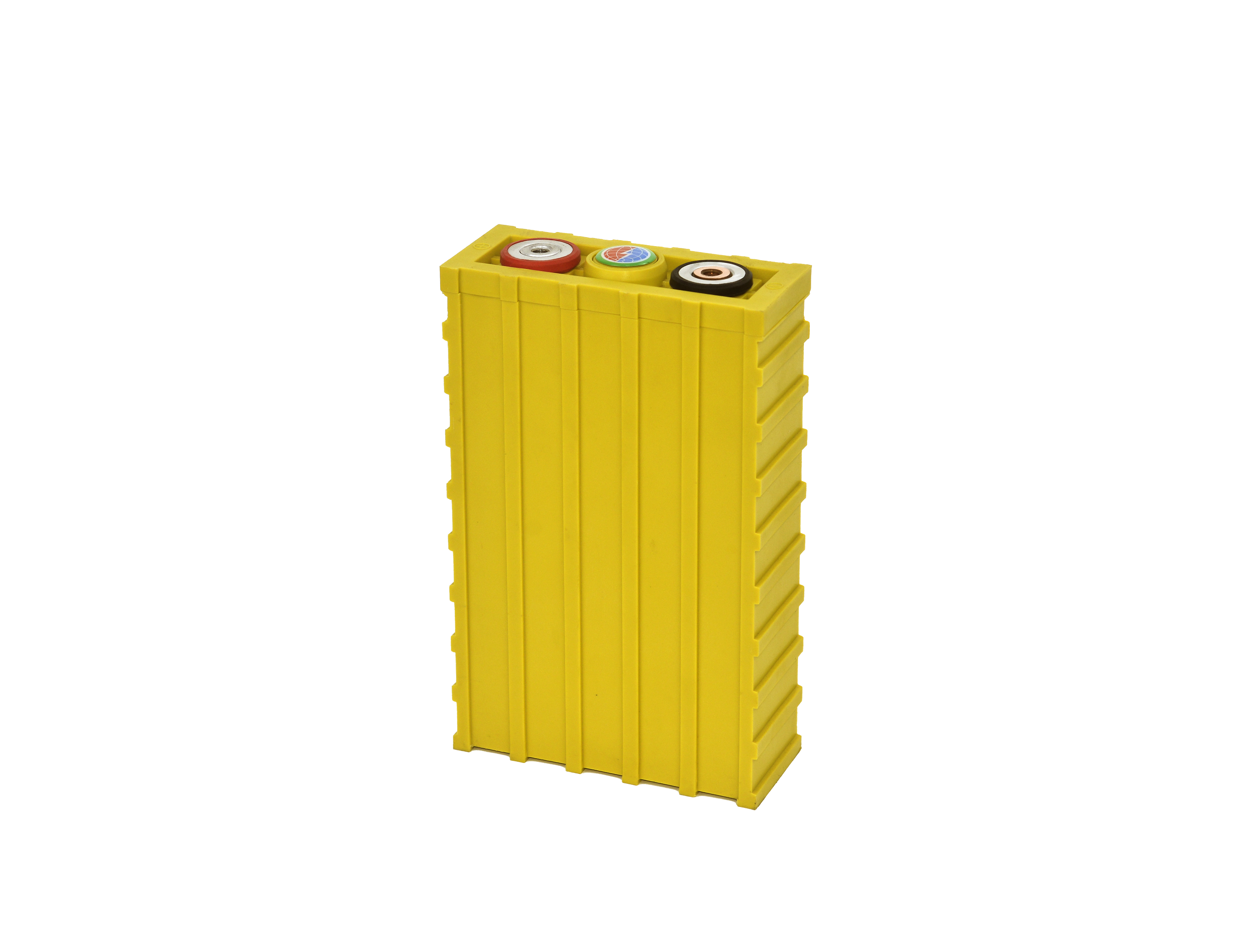

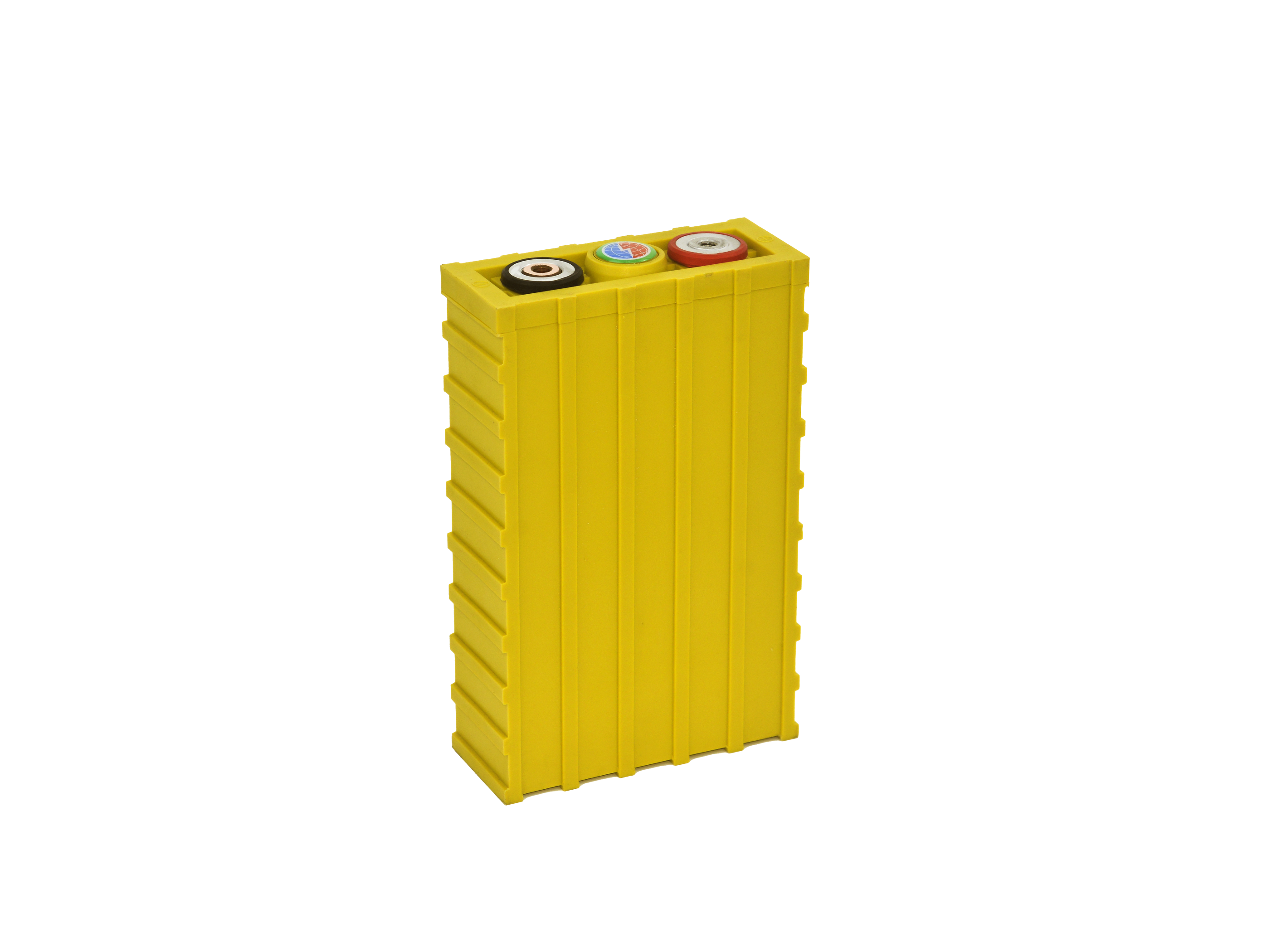

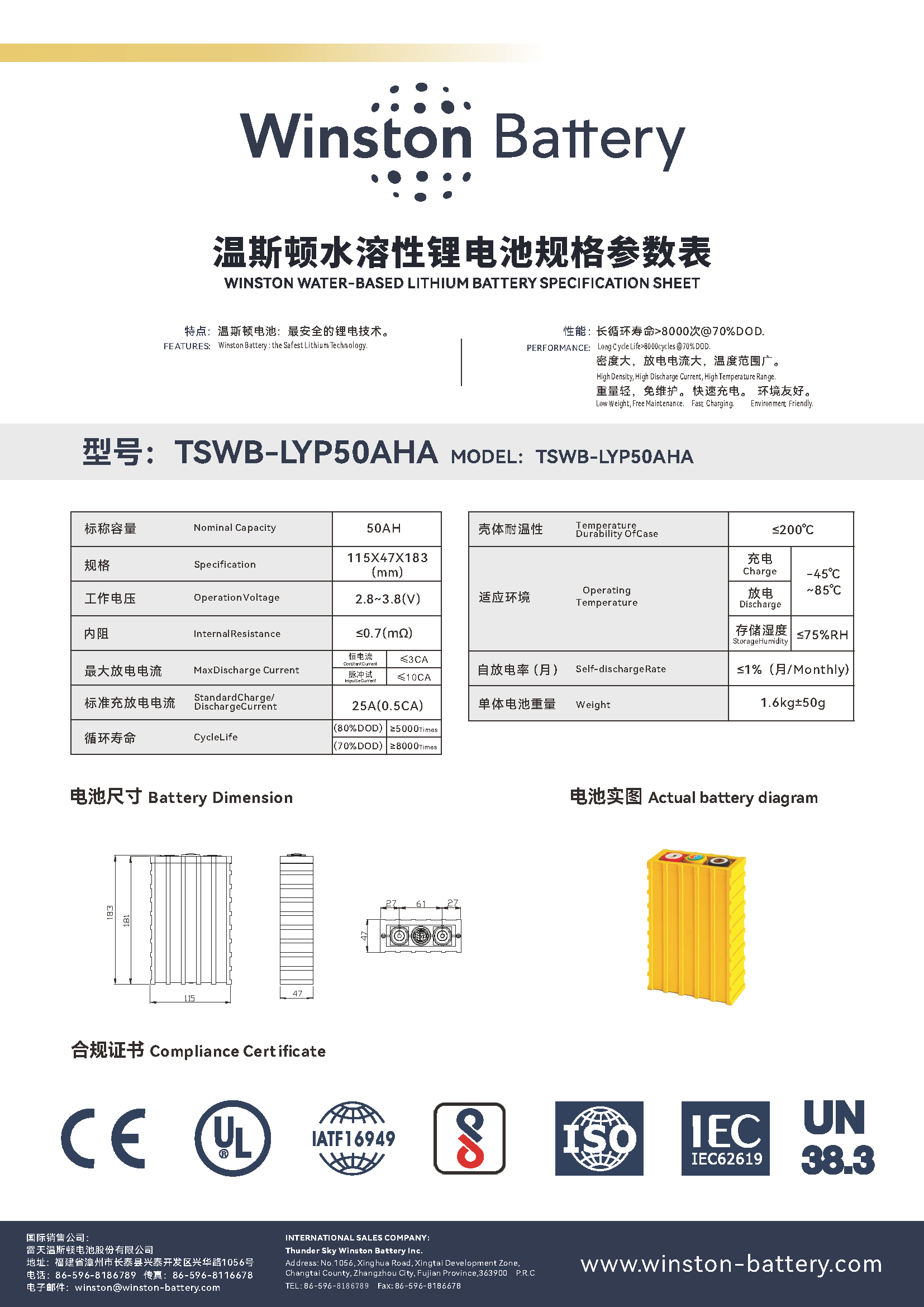

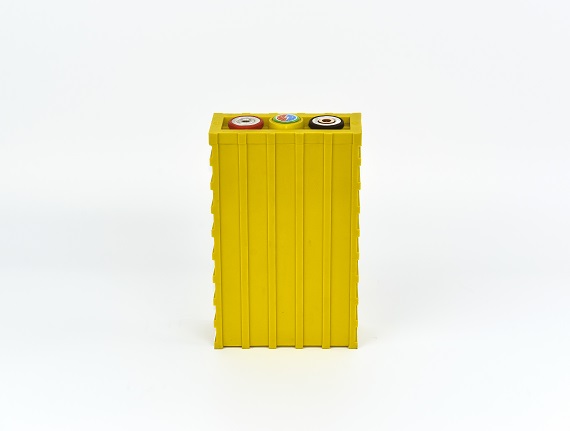

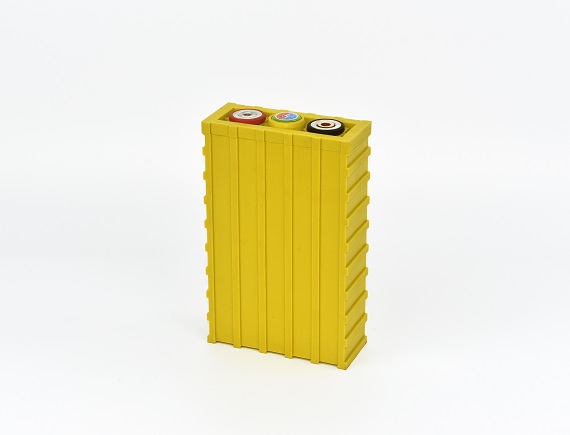

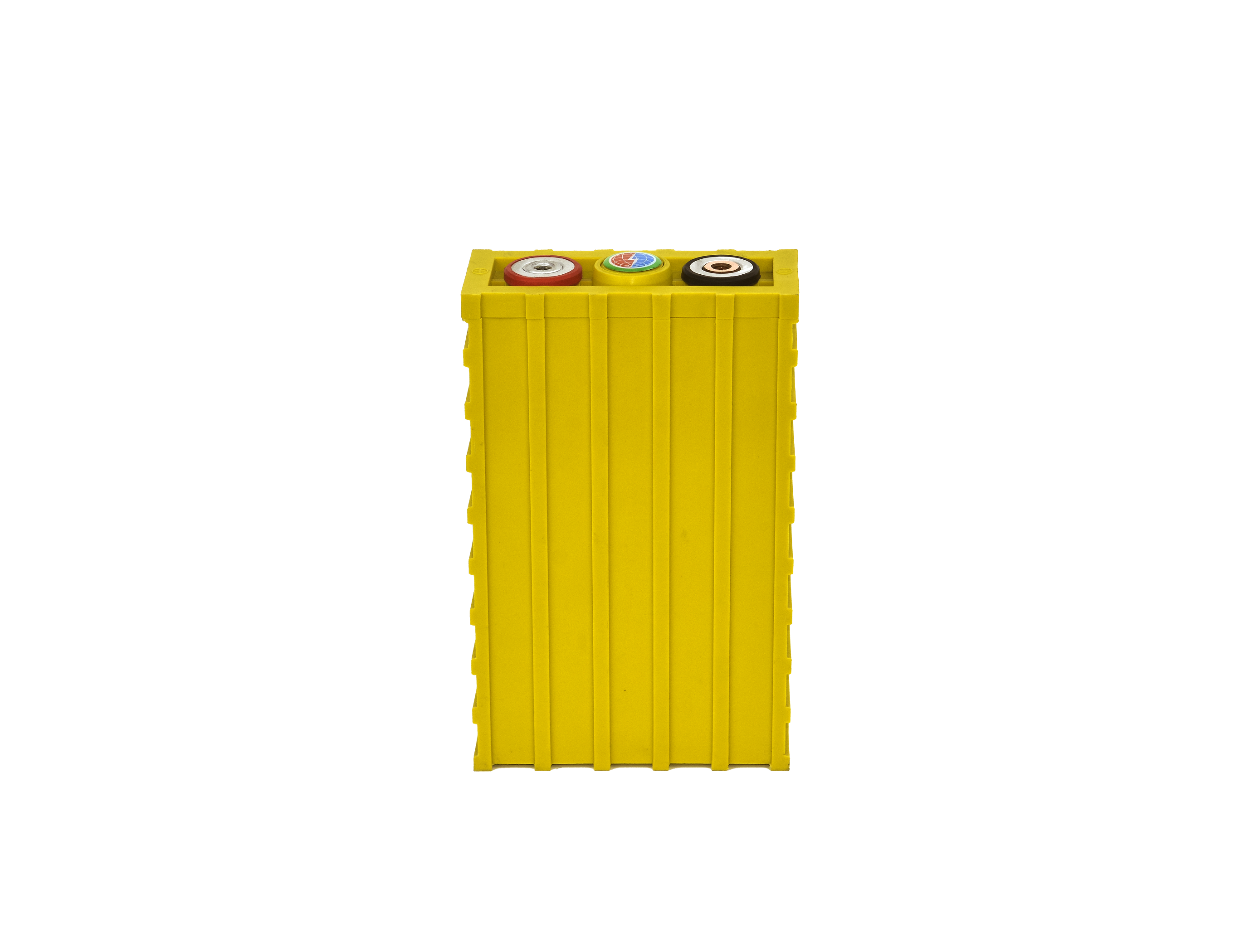

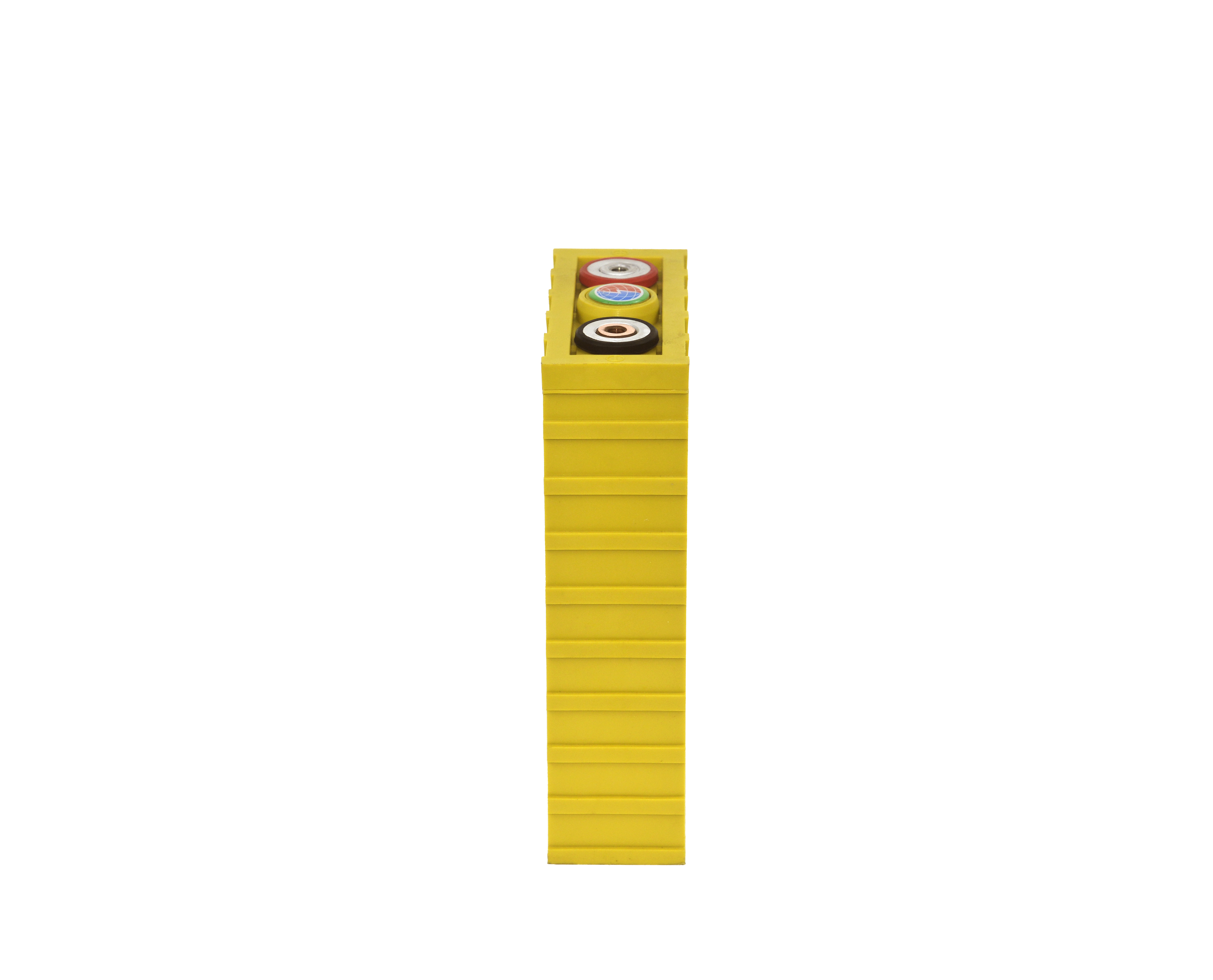

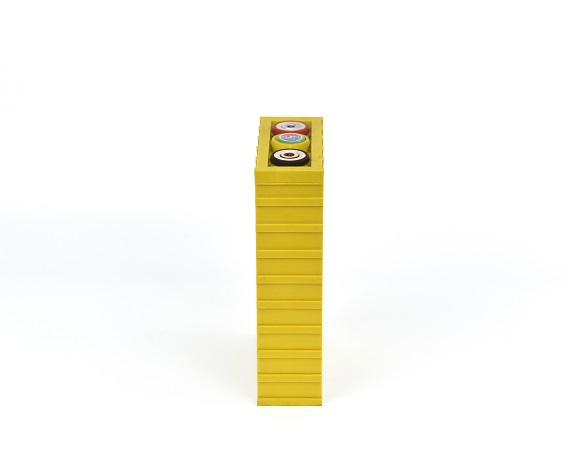

Winston Battery LYP Prismatic Cell Series TSWB-LYP50AHA
High output rate · Stable voltage
Large-format prismatic cells based on the LYP water-based lithium-yttrium chemistry, designed for ultra-high safety, long service life, and operation in complex environments.
By increasing single-cell capacity, parallel connections are significantly reduced, enabling stable voltage performance and predictable aging behavior under high C-rate operation, wide temperature ranges, and long-term cycling.
Rated capacity: 50AH
Operating voltage: 2.8V - 3.8V
Weight: 1.6kg ± 50g
Dimensions: 115*47*183mm
Cycle life: 80% DOD ≥ 5000 times, 70% DOD ≥ 7000 times
By increasing single-cell capacity, parallel connections are significantly reduced, enabling stable voltage performance and predictable aging behavior under high C-rate operation, wide temperature ranges, and long-term cycling.
Rated capacity: 50AH
Operating voltage: 2.8V - 3.8V
Weight: 1.6kg ± 50g
Dimensions: 115*47*183mm
Cycle life: 80% DOD ≥ 5000 times, 70% DOD ≥ 7000 times
