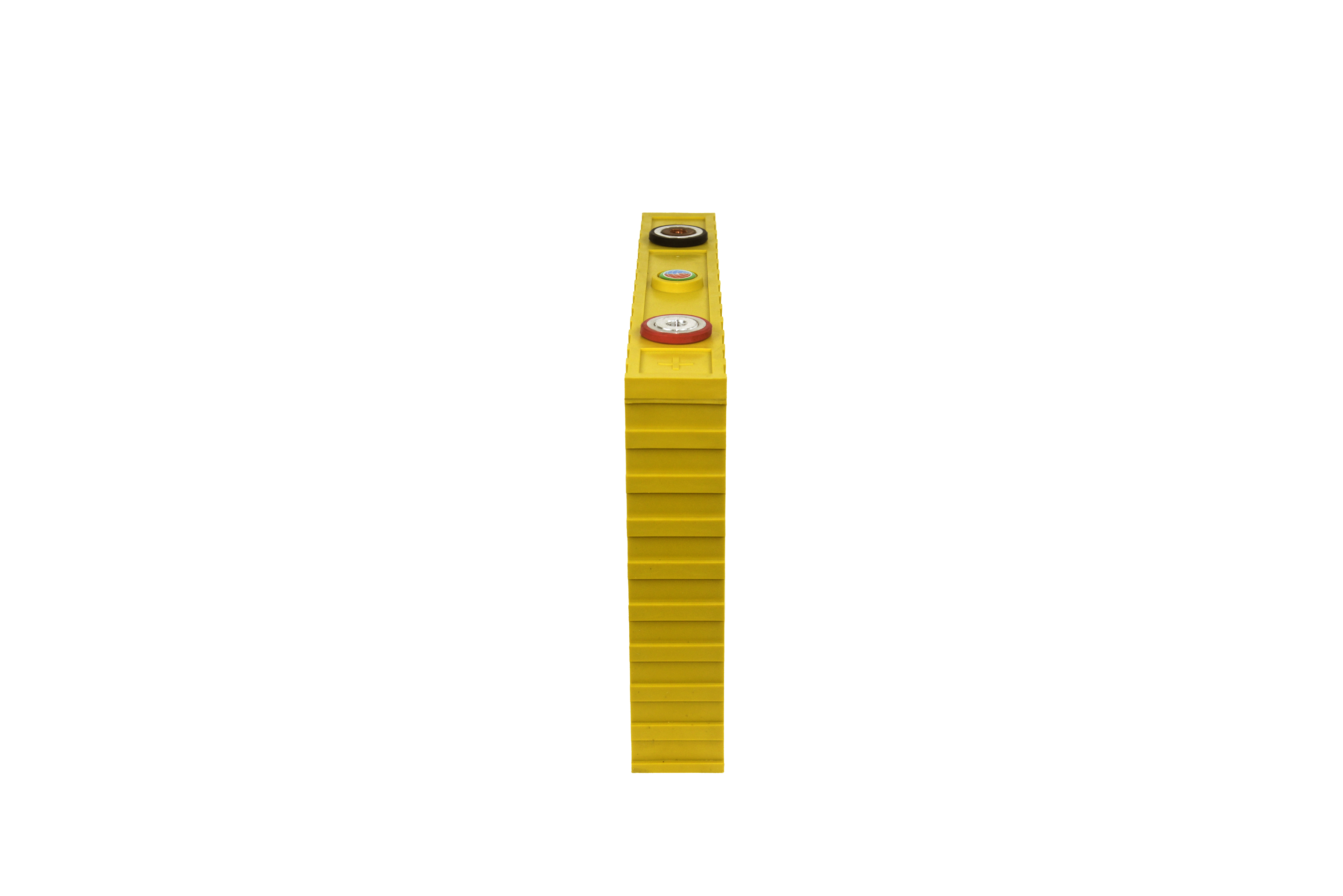

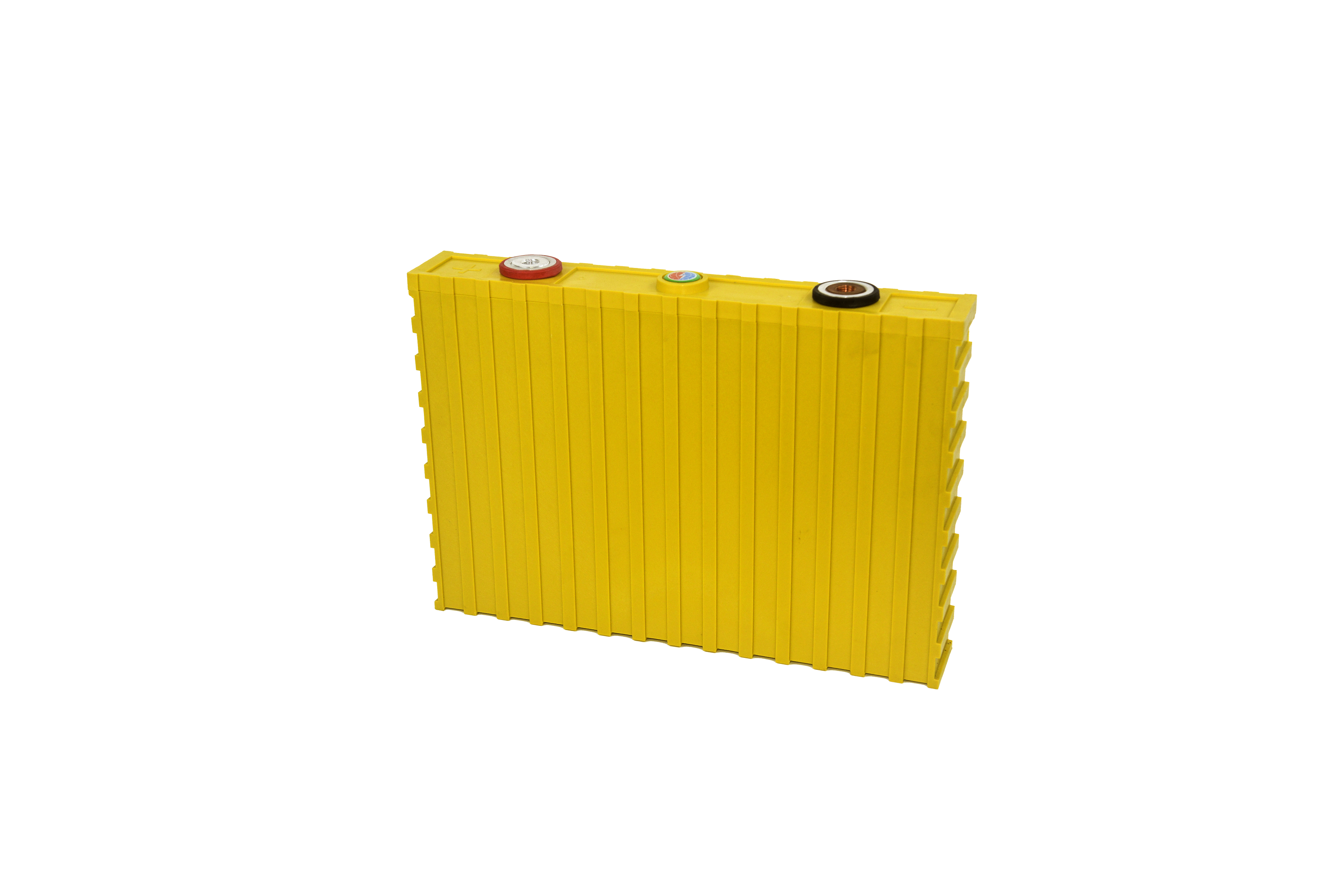

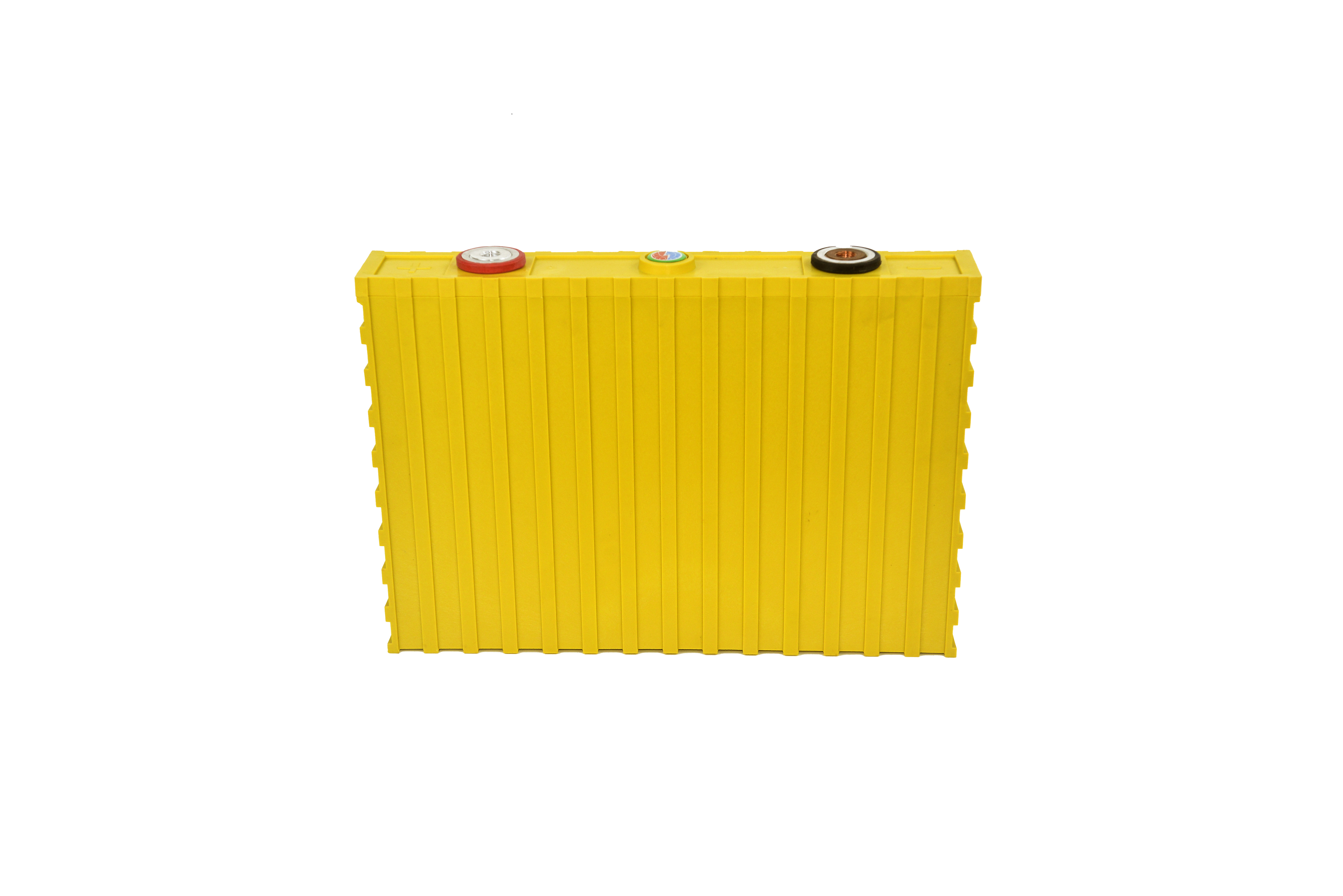

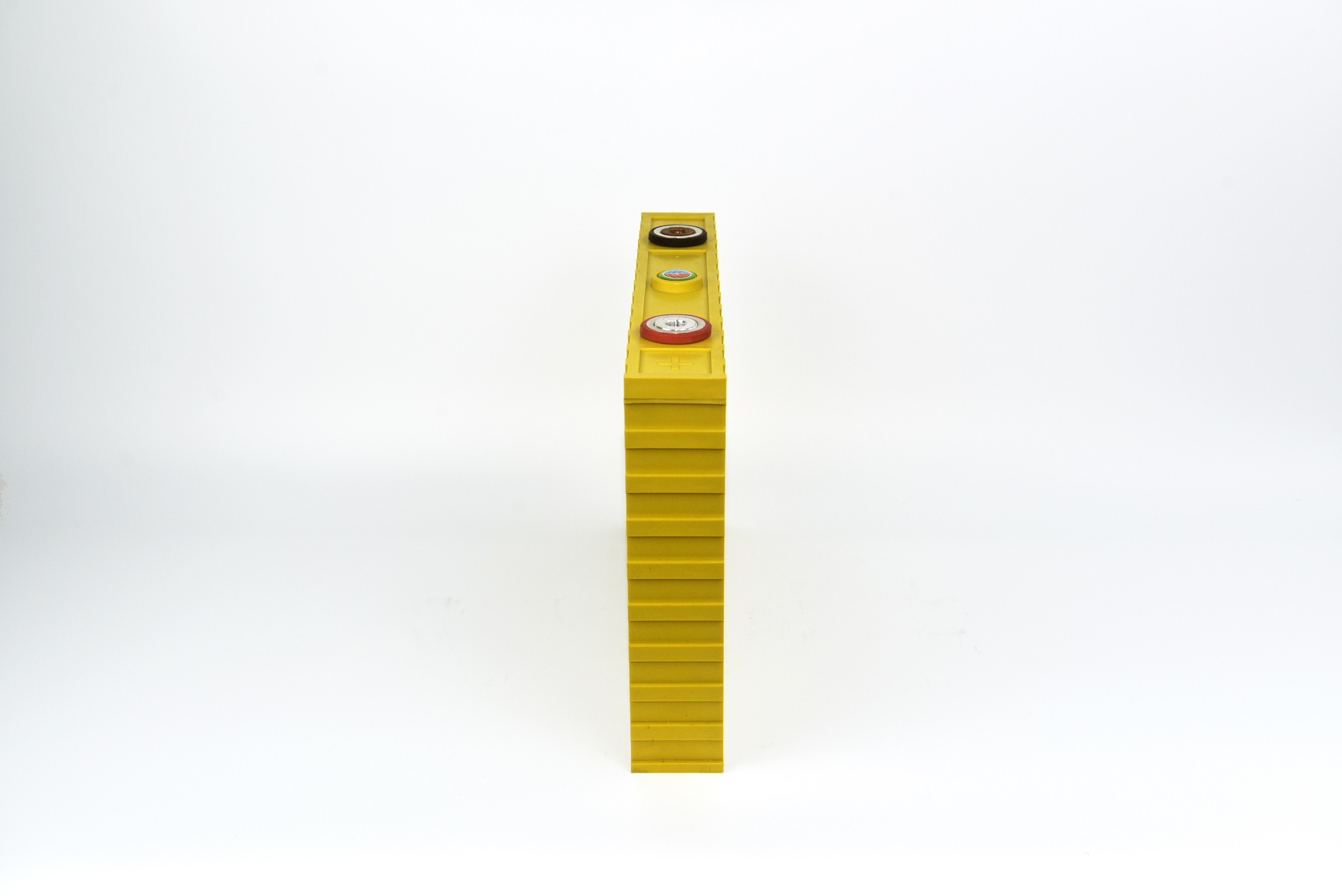

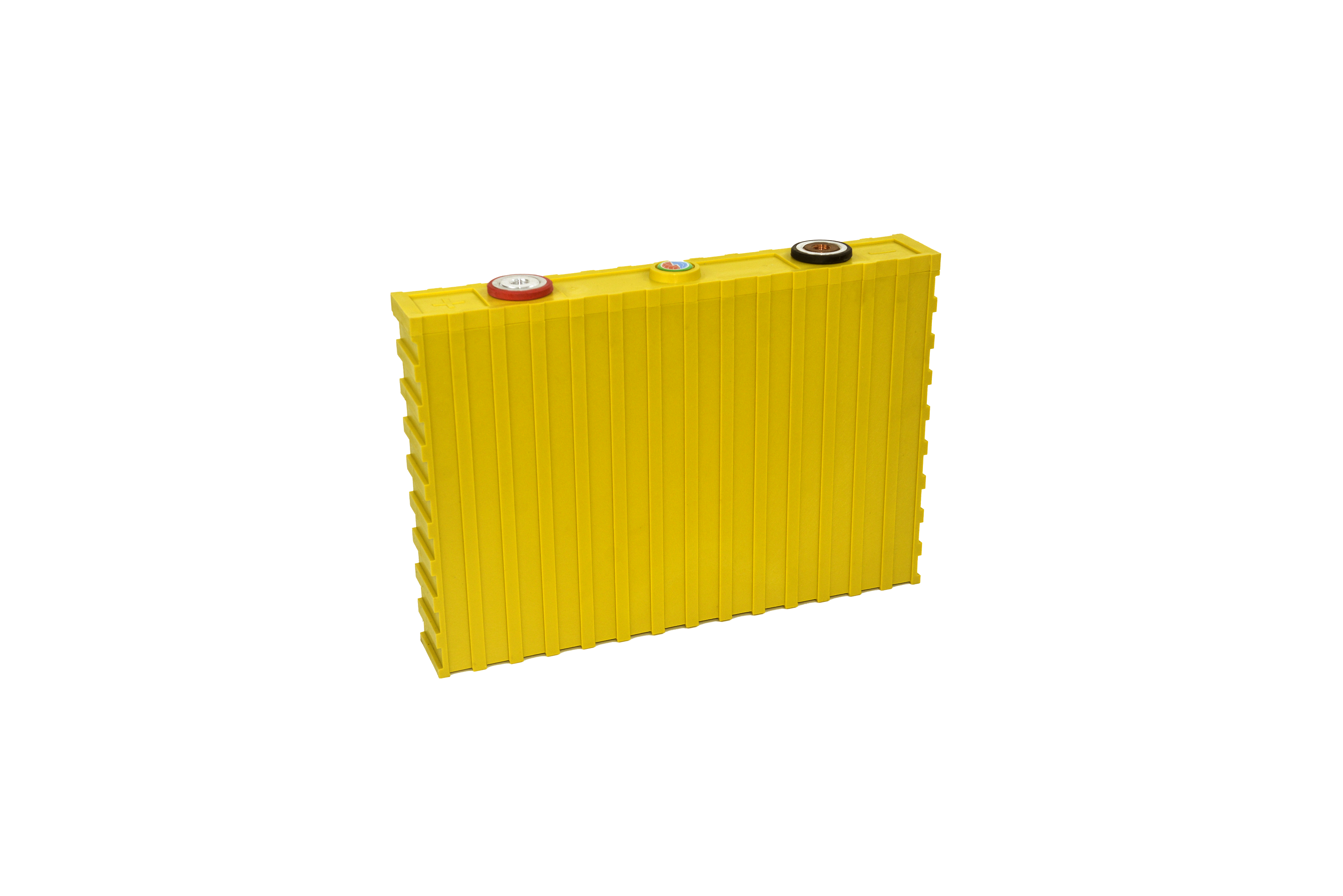

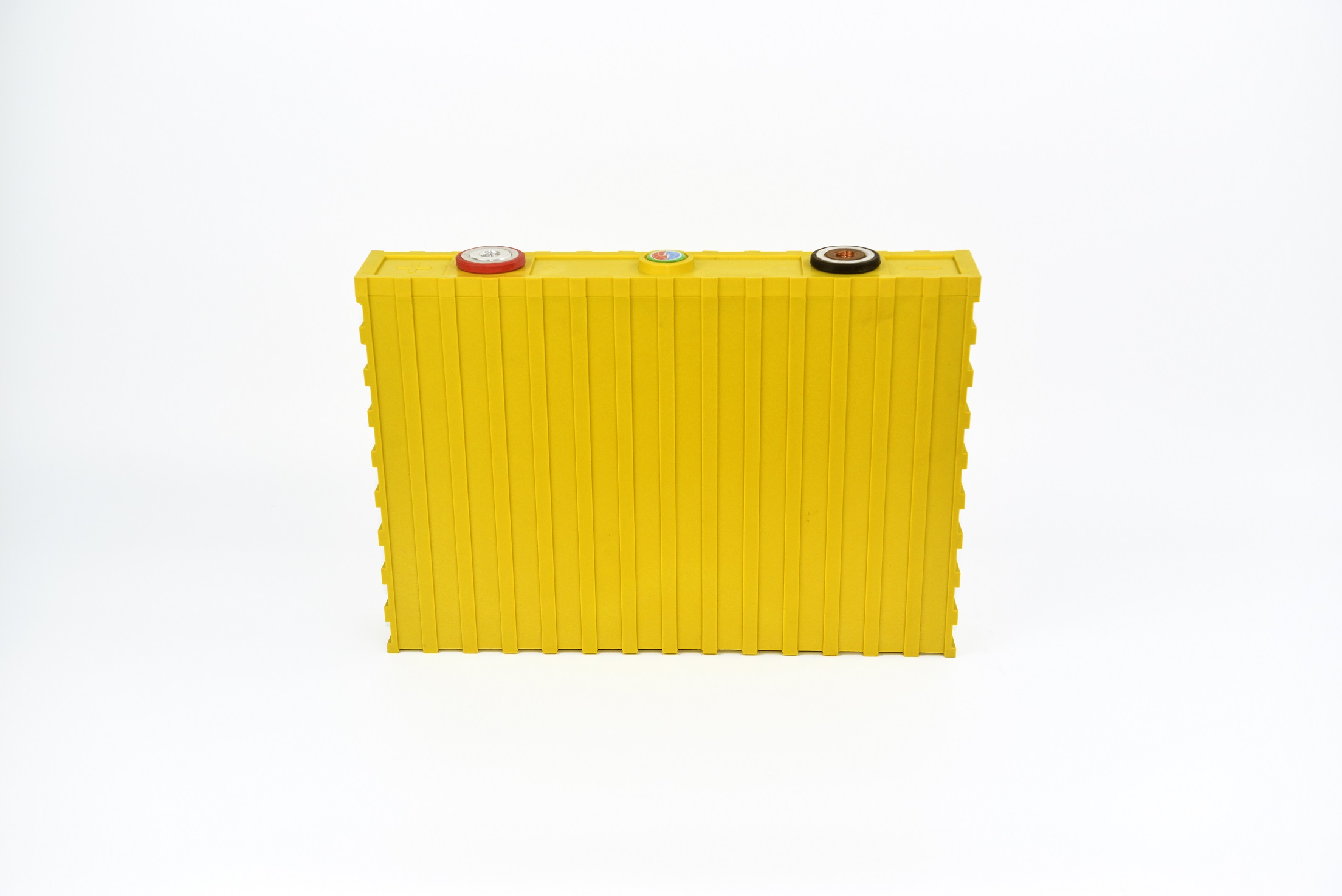

Winston Battery LYP Prismatic Cell Series TSWB-LYP200AHA
Low parallel architecture · Prioritize long-term operational reliability
Large-format prismatic cells based on the LYP water-based lithium-yttrium chemistry, designed for ultra-high safety, long service life, and operation in complex environments.
By increasing single-cell capacity, parallel connections are significantly reduced, enabling stable voltage performance and predictable aging behavior under high C-rate operation, wide temperature ranges, and long-term cycling.
Minimum capacity：250AH
Operating voltage：2.8V ～3.8V
Weight：7.9kg±200g
Dimensions：361*55.5*254mm
Cycle times：80%DOD≥5000 times，70%DOD≥7000 times
By increasing single-cell capacity, parallel connections are significantly reduced, enabling stable voltage performance and predictable aging behavior under high C-rate operation, wide temperature ranges, and long-term cycling.
Minimum capacity：250AH
Operating voltage：2.8V ～3.8V
Weight：7.9kg±200g
Dimensions：361*55.5*254mm
Cycle times：80%DOD≥5000 times，70%DOD≥7000 times
